Max Film Width: 9.84 " (250mm)
Bag Length: (2U) 2.56 - 7.08" or (1U) 4.72 - 11.02" (65-180 mm or 120-280mm)
Bag Width: 1.18 - 4.33" (30 - 110mm)
Max Product Height: 1.77 (45mm)
Packaging Speed: 40-120 cycles/min
Max Film Roll Diameter: 12.59" (320mm)
Power Supply: 220V 50/60Hz 2.4 KW
Machine Size: 12' 3" x 2' 3" x 4' 9" (3720mm x 670mm x 1320mm)
Machine Weight: 1058.22 lbs (480kg)
*Specifications may change based on the system configuration

Max Film Width: 17.71" (450mm)
Bag Length: 7.08 - 17.71" (180 - 450 mm)
Bag Width: 1.96 - 7.08" (50 - 180mm )
Max Product Height: 2.95" (75mm)
Packaging Speed: 40-120 cycles/min
Max Film Roll Diameter: 12.59" (320mm)
Power Supply: 220V, 50/60Hz, 2.8 KW
Machine Size: 12' 11" x 2' 9" x 4' 10" (3920mm x 820mm x 1450mm)
Machine Weight: 1213 lbs (550kg)
*Specifications may change based on the system configuration

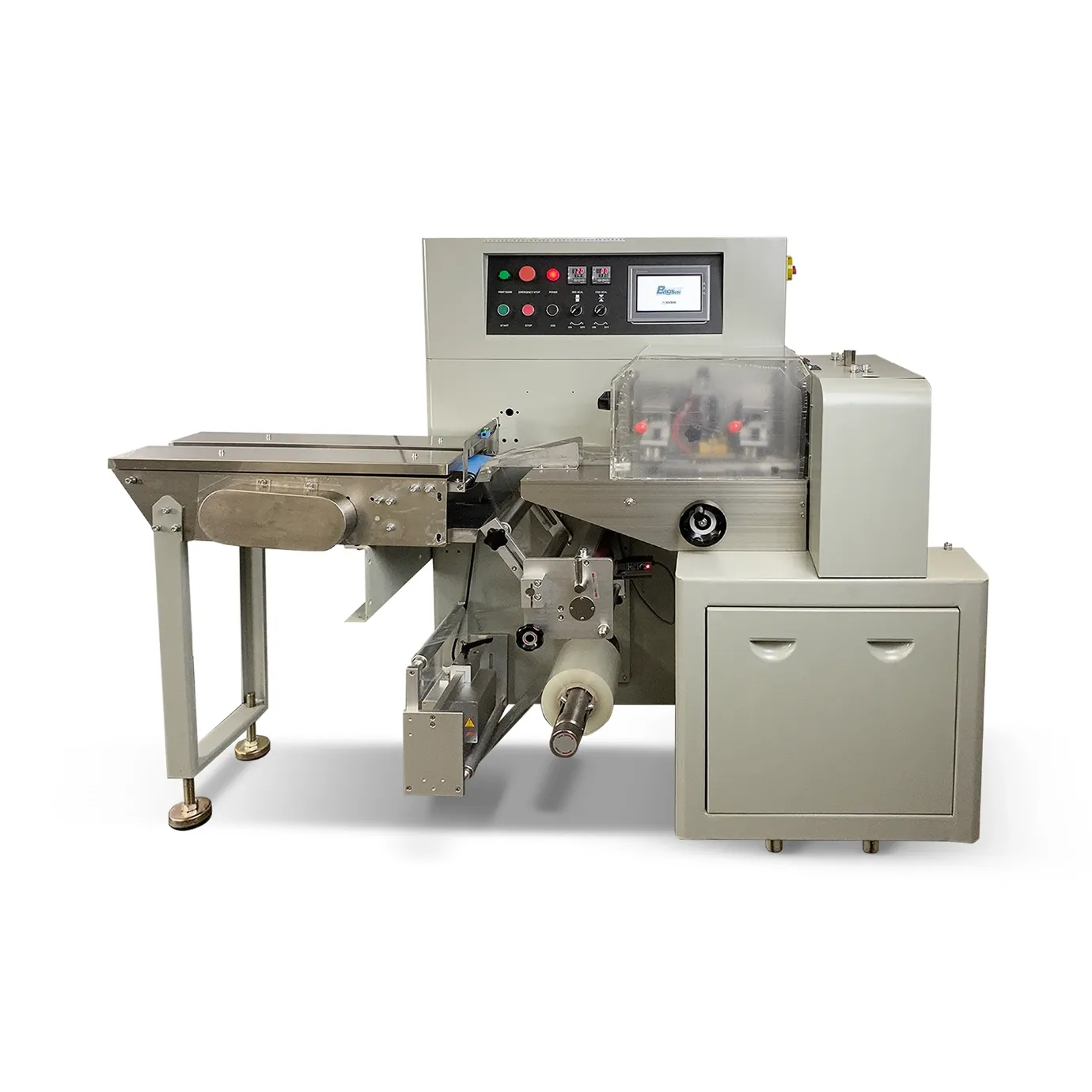

Type: Horizontal Flow Wrapper
Film Width Max: 13.78"
Bag Length: 2.36-24.00"
Bag Width: 1.90" - 6.29"
Product Height: 0.35”- 2.36”
Film Thickness: 1.2mil - 3.15mil
Flow Rate: 30-120 cycles/min
Power: 220v, 50/60HZ, 2,900 Watts
Est Machine Size: L 13' 3" x W 3' 2" x H 5' 5"
Machine Weight: 1534lb.
Features:
- Stainless Steel Chassis
- Water Resistant Electrical Connectors
- Stainless Steel and Plexiglass Machine Covers
- Product Detection Sensor
- Adjustable Bag Former
- Adjustable Product Tray Table and Product Position Guide
- Stainless Steel / UHDPE Product Contact Materials
- Full Servo Control System (3 Servo, In-feed Conveyor, Film Drive, End Seal Block)
- Setup Memory with 21 Programmable Configurations
*Specifications may change based on the system configuration

Max Film Width: 27.55" (700mm)
Bag Length: 7.08 - 19.68" (180 - 500mm)
Bag Width: 3.93 - 11.02" (100 - 280mm)
Max Product Height: 3.93" (100mm)
Packaging Speed: 40-120 cycles/min
Max Film Roll Diameter: 12.59" (320mm)
Power Supply: 220V, 50/60Hz, 2.8 KW
Machine Size: 14' 2" x 3' 2" x 4' 11" (4340mm x 970mm x 1500mm)
Machine Weight: 1278 lbs (580kg)
*Specifications may change based on the system configuration

Max Film Width: 23.62" (600mm)
Bag Length: 7.08 - 19.68" (180 - 500mm)
Bag Width: 3.93 - 11.02" (100 - 280mm)
Max Product Height: 3.93" (100mm)
Packaging Speed: 40-120 cycles/min
Max Film Roll Diameter: 12.59" (320mm)
Power Supply: 220V, 50/60Hz, 2.8 KW
Machine Size: 14' 2" x 3' 2" x 4' 11" (4340mm x 970mm x 1500mm)
Machine Weight: 1278 lbs (580kg)
*Specifications may change based on the system configuration

Max Film Width: 14.56" (370mm)
Bag Length: 3.15 - 19.68" (80-500mm)
Bag Width: 2.36 - 6.29" (60 - 160mm)
Max Product Height: 2.75" (70mm)
Packaging Speed: 30-120 cycles/min
Max Film Roll Diameter: 12.59" (320mm)
Power Supply: 220V, 50/60Hz 2.8 KW
Machine Size: 13' 3" x W 3' 2" x H 5' 5" (4000mm x 950mm x 1650mm)
Machine Weight: 996 lbs (452kg)
*Specifications may change based on the system configuration

Max Film Width: 13.77" (350mm)
Bag Length: (2U) 2.56 - 7.08" or (1U) 4.72 - 11.02" (65 - 180 mm or 120 - 280mm)
Bag Width: 1.97 - 6.30" (50 - 160mm)
Max Product Height: 2.16" (55mm)
Packaging Speed: 40-120 cycles/min
Max Film Roll Diameter: 12.59" (320mm)
Power Supply: 220v 50/60Hz 2.7 KW
Machine Size: 12' 10" x 2' 4" x 4" 3' (3920mm x 720mm x 1320mm)
Machine Weight: 1102 lbs (500kg)
*Specifications may change based on the system configuration

Max Film Width: 9.84" (250mm)
Bag Length: 1.57" - 11.02" (40mm - 280mm)
Bag Width: 1.18 - 4.33" (30-110mm)
Max Product Height: 1.57" (40mm)
Packaging Speed: 40-200 cycles/min
Max Film Roll Diameter: 12.59" (320mm)
Power Supply: 220V 50/60Hz 2.4 KW
Machine Size: 12' 5" x 2' 3" x 4' 9" (3770mm x 670mm x 1450mm)
Machine Weight: 948 lbs (430 kg)
*Specifications may change based on the system configuration

Max Film Width: 9.84" (250mm)
Bag Length: (2U) 2.56 -7.48" or (1U) 4.73 -11.02" (65 - 190mm or 120 - 280mm)
Bag Width: 1.18 - 4.33" (30-110mm)
Max Product Height: 1.57" (40mm)
Packaging Speed: 40-150 cycles/min
Max Film Roll Diameter: 12.59" (320mm)
Power Supply: 220V 50/60Hz 2.4 KW
Machine Size: 12' 5" x 2' 3" x 4' 9" (3770mm x 670mm x 1450mm)
Machine Weight: 948 lbs (430 kg)
*Specifications may change based on the system configuration

Max Film Width: 27.55" (700mm)
Bag Length: 7.08 - 19.68" (180 - 500mm)
Bag Width: 3.93 - 11.02" (100 - 280mm)
Max Product Height: 3.93" (100mm)
Packaging Speed: 40-120 cycles/min
Max Film Roll Diameter: 12.59" (320mm)
Power Supply: 220V, 50/60Hz, 2.8 KW
Machine Size: 14' 2" x 3' 2" x 4' 11" (4340mm x 970mm x 1500mm)
Machine Weight: 1278 lbs (580kg)
*Specifications may change based on the system configuration

Max Film Width: 23.62" (600mm)
Bag Length: 7.08" - 19.68" (180 - 500mm)
Bag Width: 3.93" - 11.02" (100 - 280mm)
Max Product Height: 3.93" (100mm)
Packaging Speed: 40-180 cycles/min
Max Film Roll Diameter: 12.59" (320mm)
Power Supply: 220V, 50/60Hz, 2.8 KW
Machine Size: 14' 2" x 3' 2" x 4' 11" (4340mm x 970mm x 1500mm)
Machine Weight: 1278 lbs (580kg)
*Specifications may change based on the system configuration

Max Film Width: 14.56" (370mm)
Bag Length: 3.15 - 19.68" (80-500mm)
Bag Width: 2.36 - 6.29" (60 - 160mm)
Max Product Height: 2.75" (70mm)
Packaging Speed: 30-225 cycles/min
Max Film Roll Diameter: 12.59" (320mm)
Power Supply: 220V, 50/60Hz 2.8 KW
Machine Size: 13' 3" x W 3' 2" x H 5' 5" (4000mm x 950mm x 1650mm)
Machine Weight: 996 lbs (452kg)
*Specifications may change based on the system configuration
