High-Speed Precision with the RCFS450L Rotary Container Filling and Sealing Machine
High-Speed Operations
Fills, seals, and lids 800-900 containers per hour, making it perfect for high-volume production lines.
Filling Range
7-34 Fl oz. (customizable)
Production Speed
Fills, seals, and lids 800-900 containers per hour.

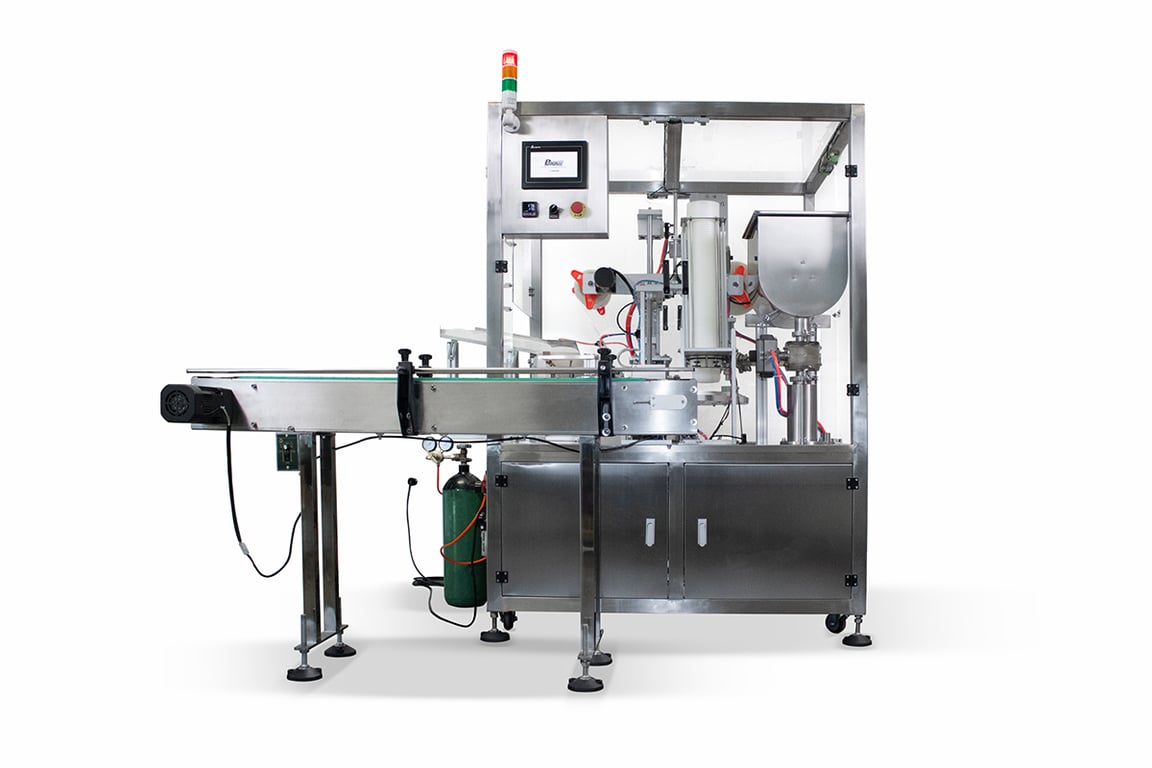

The RCFS450L Rotary Container Filling and Sealing Machine is a high-efficiency system designed to handle a wide range of products with precision and speed. This machine can be configured based on your product.
It accelerates the entire packaging process with efficient cup loading/dropping, precise filling, poly sealing, lidding, and an integrated exit system, ensuring smooth and continuous production flow.
The machine utilizes roll film for automatic cutting and sealing, equipped with an eye mark sensor, making it compatible with both printed and non-printed films. Additionally, the system includes an adjustable gas flush feature, allowing you to control the pressure and timing to preserve product freshness for perishable goods.
The rotary table can be customized to accommodate various cup sizes and styles, provided they meet the required seal area and cup form specifications, allowing the automated cup loading and dropping system to function seamlessly. With its modular stations, this machine is designed for high-speed, reliable operation.
Key Features of the RCFS450L Rotary Container Filling and Sealing Machine
High-Speed Operation
Fills, seals, and lids 800-900 containers per hour, making it perfect for high-volume production lines.
Customizable Rotary Table
The rotary table’s cavities can be tailored to different cup sizes and styles within specific parameters, ensuring efficient cup loading and sealing.

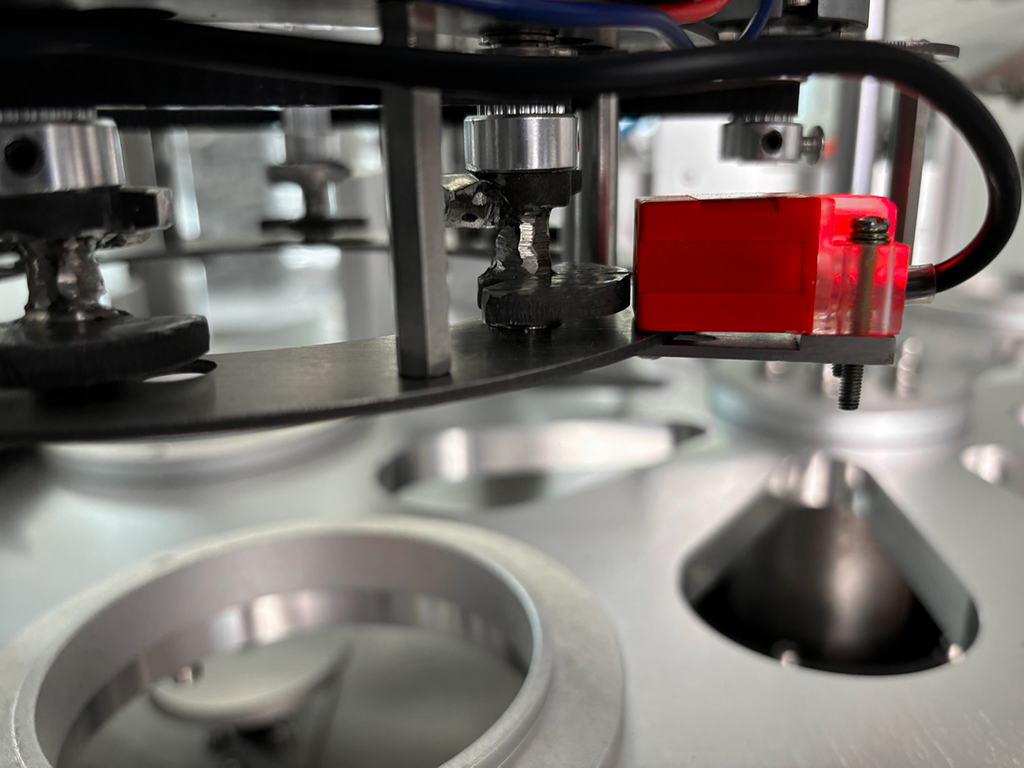

Roll Film Sealing with Eye Mark Sensor
Utilizes roll film for automatic cutting and sealing, and can handle both printed and non-printed films thanks to the integrated eye mark sensor.
Adjustable Gas Flush System
Designed for precise control of pressure and timing, this feature is ideal for extending the shelf life of your products.
Poly Sealing and Lidding
The machine provides efficient poly sealing before securely applying the lid.

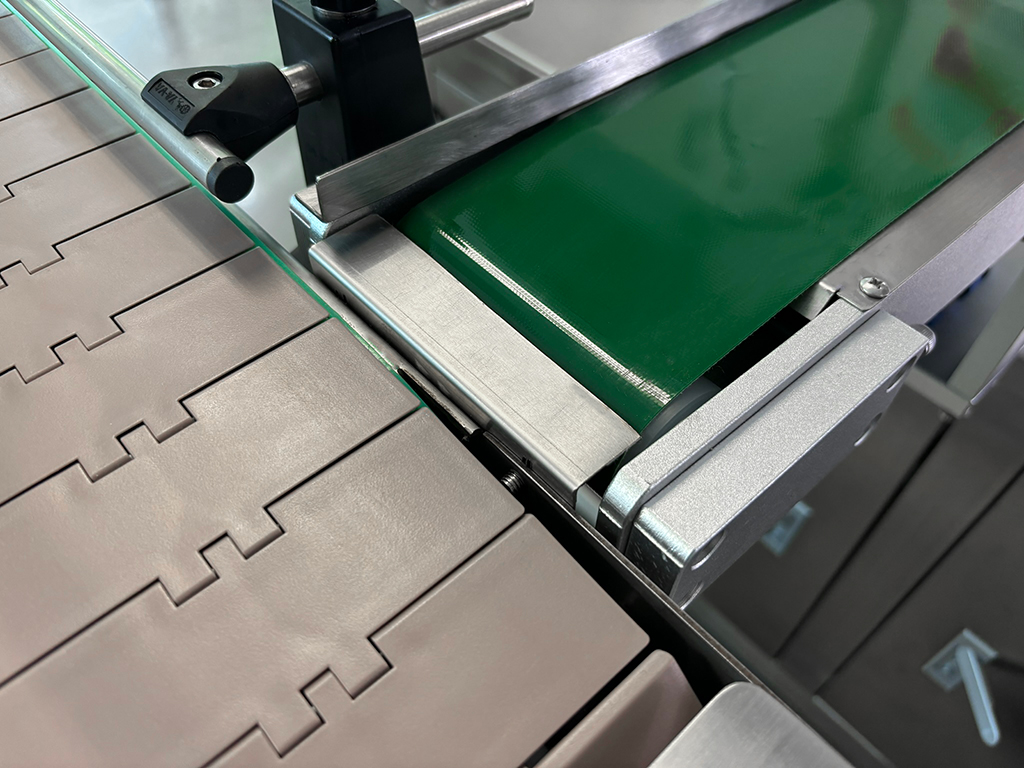

Exit Conveyor
Includes an automated takeaway conveyor to transfer finished products, ensuring continuous operation.
Machine Specifications
RCFS450L
- Production Speed: 800-900 cups/hour
- Filling Range: 7-34 fl oz. (customizable)
- Cup Size (Mouth Diameter): 4.5 inches (customizable)
- Power: 208-240V, 50/60Hz, 2,200 Watts
- Air Pressure: 72-108 PSI
- Air Consumption: 8 Cubic Feet/Min
- Machine Dimensions: Length 5’ x Width 6’ x Height 5' 11"
- Maximum Film Roll Diameter: 10.82 inches
Versatile Product Handling Capabilities of the RCFS450L
Food Products:
soups, sauces, yogurts, dips
Industrial Products:
adhesives, chemicals, lubricants
Cosmetic Products:
creams, lotions, gels
House Hold Industrial Products:
cleaners, detergents, paint
