IF1770S Horizontal Flow Wrapper
Compact inverted horizontal flow wrapper designed for efficiently packaging medium to larger products, including bakery items, snack bars, confectionery, and frozen foods, with reliable performance and extended package size capability.
- Up to 120 packs/min
- Product Height: Up to 75 mm (2.95 in)
- Bag Length: 180–450 mm (7.08–17.71 in)
- Film Width: Up to 180 mm (7.08 in)
IF1770S Servo Horizontal Flow Wrapper
Compact inverted horizontal flow wrapper designed for efficiently packaging medium to larger products, including bakery items, snack bars, confectionery, and frozen foods, with reliable performance and extended package size capability.
Product Height: Up to 75 mm (2.95 in)
Bag Length: 180–450 mm (7.08–17.71 in)
Film Width: Up to 180 mm (7.08 in)
Ideal For
Confectionary
Baked Products
Frozen Foods
Frozen Deserts
Overview

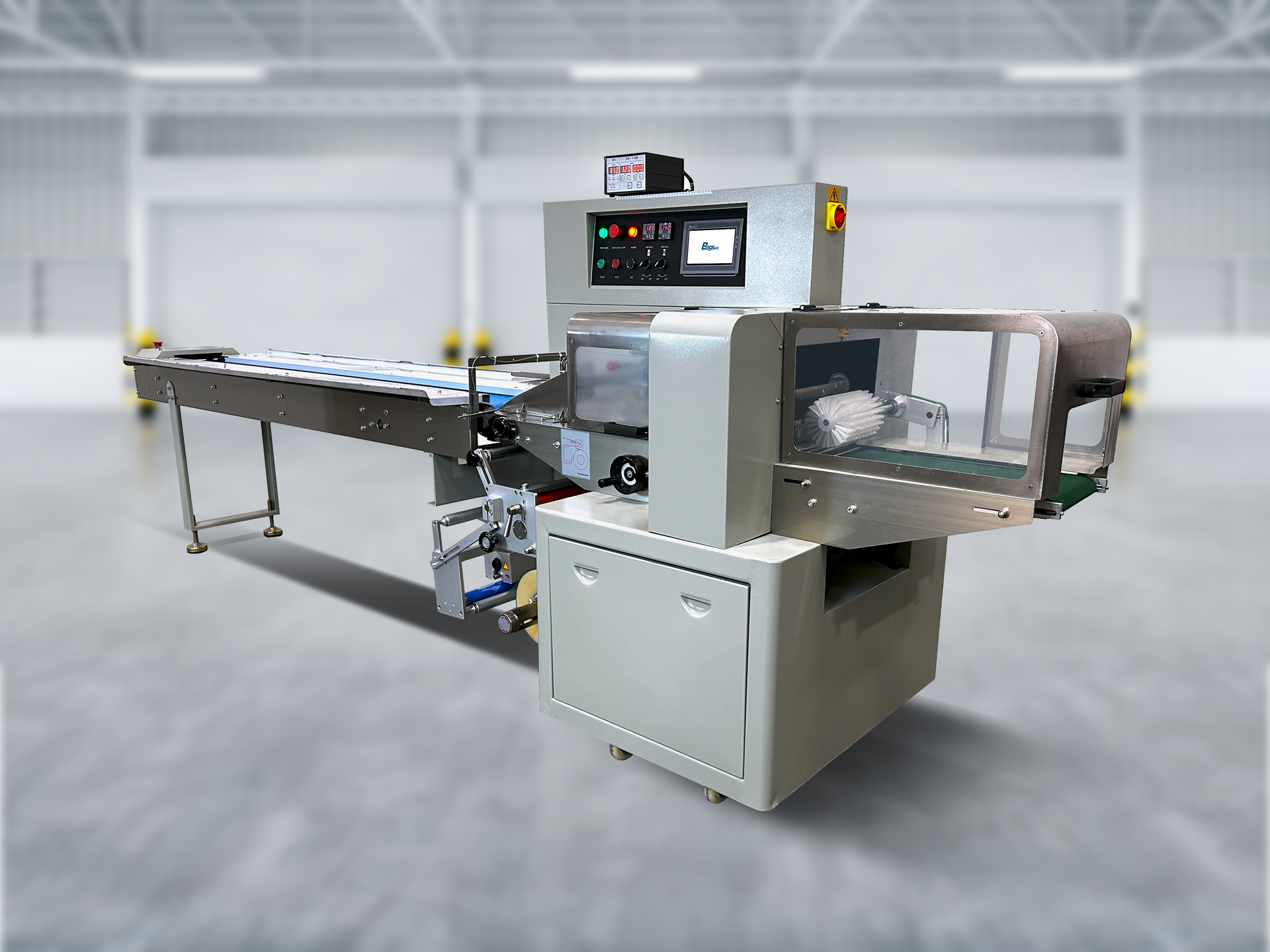

The IF1770S Inverted Horizontal Flow Wrapper is a compact, high-performance packaging machine designed for efficiently wrapping small to medium-sized products in pillow packs. Built with an inverted configuration and a full servo control system for precise motion and consistent sealing, the IF1770S delivers reliable packaging speeds of 40 to 120 cycles per minute.
The machine supports bag lengths from 180–450 mm (7.08–17.71 in), bag widths from 50–180 mm (1.96–7.08 in), and product heights up to 75 mm (2.95 in). This flexibility makes it ideal for packaging snack bars, bakery items, confectionery, frozen foods, and other products requiring consistent presentation.
With a maximum film width of 450 mm (17.71 in) and film roll diameter up to 320 mm (12.59 in), the IF1770S is compatible with a wide variety of flexible packaging films. Its larger format capacity and efficient operation make it a practical solution for manufacturers looking to automate packaging with reliable performance.
Technical Specifications
Bag Length
7.08 - 17.71" (180 - 450 mm)
Bag Width
1.96 - 7.08" (50 - 180mm)
Max Film Width
17.71" (450mm)
Max Roll Diameter
12.59" (320mm)
Max Product Height
2.95" (75mm)
Packaging Speed
40 - 120 cycles/min
Power Supply
220V, 50/60Hz, 2.8 KW
Machine Weight
1213 lbs (550kg)
Options & Upgrades
Optimized Film and Machine Performance
We don’t just supply the machine, we provide the film that runs on it. By aligning film structure with machine performance, we help ensure consistent seals, reduce waste, and improve overall efficiency. This integrated approach minimizes downtime, improves package quality, and ensures your operation runs reliably at scale.
- Custom roll stock film tailored to your product
- Improved seal consistency and package quality
- Reduced downtime from film-related issues
- One vendor for machine, film, and ongoing support
Not Sure What You Need?
We’ll recommend the right machine configuration and film based on your product, packaging requirements, and production goals.
