Compare Inverted Horizontal Flow Wrapper Models
Quickly compare key specifications to find the right machine.

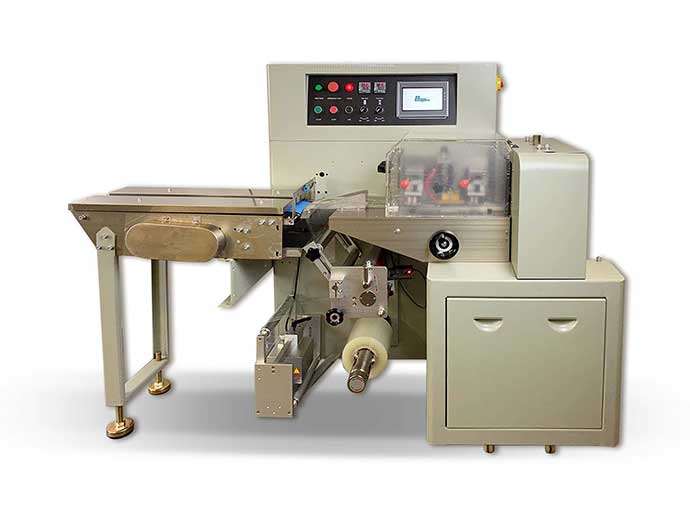

IF987S
IF987S Full Servo Horizontal Flow Wrapper

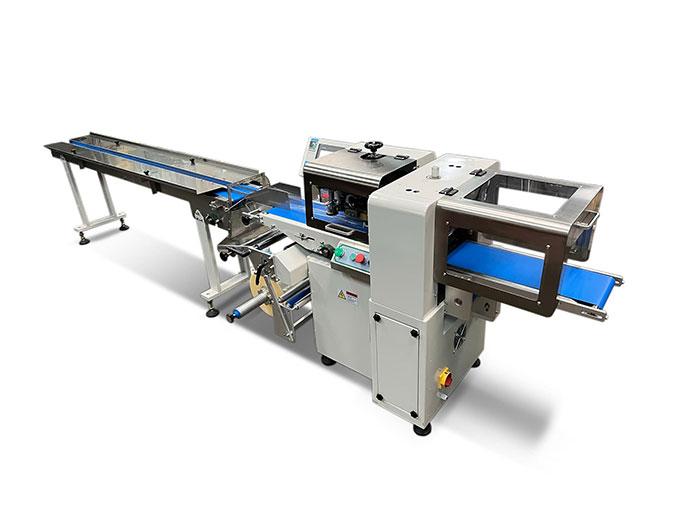

IF1380S
IF1380S Full Servo Horizontal Flow Wrapper

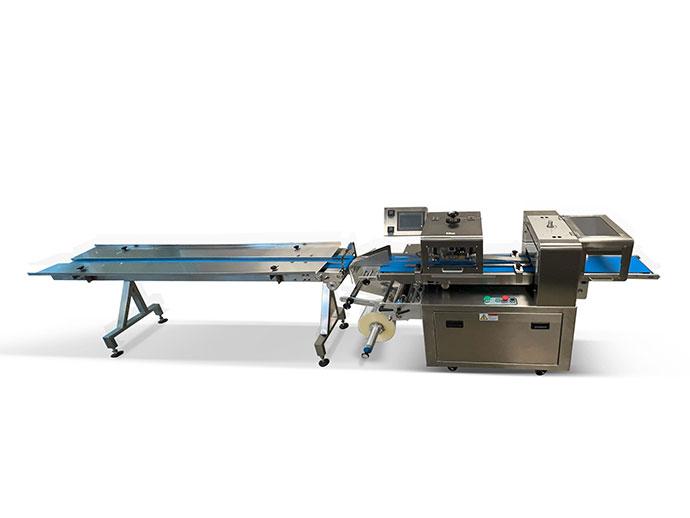

IF1380SSW
IF1380SSW Full Servo Horizontal Flow Wrapper

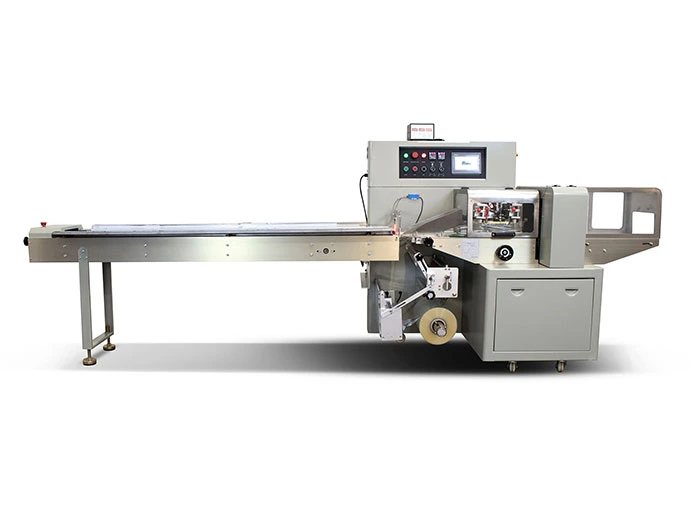

IF1770S
IF1770S Full Servo Horizontal Flow Wrapper

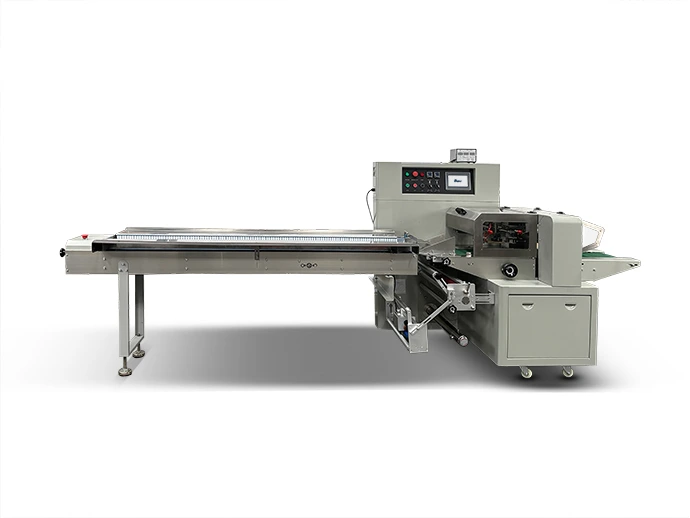

IF2360S
IF2360S Full Servo Horizontal Flow Wrapper

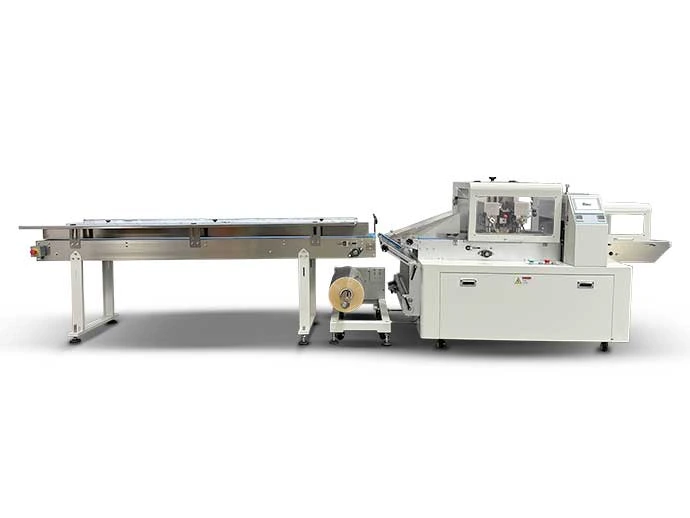

IF2750S
IF2750S Full Servo Horizontal Flow Wrapper
| Feature | IF987S | IF1380S | IF1380SSW | IF1770S | IF2360S | IF2750S |
|---|---|---|---|---|---|---|
| Film Width | Up to 9.84" (250mm) |
Up to 14.56" (370mm) | Up to 13.78" (350mm) |
Up to 17.71" (450mm) |
Up to 23.62" (600mm) |
Up to 27.55" (700mm) |
| Bag Length |
(2U) 2.56 - 7.08" or (1U) 4.72 - 11.02" (65-180 mm or 120-280mm) |
3.15 - 19.68" (80-500mm) |
2.36-24.00" (60-610mm) |
7.08 - 17.71" (180 - 450 mm) |
7.08 - 19.68" (180 - 500mm) |
7.08 - 19.68" (180 - 500mm) |
| Bag Width |
1.18 - 4.33" (30 - 110mm) |
2.36 - 6.29" (60 - 160mm) |
1.90" - 6.29" (48-160mm) |
1.96 - 7.08" (50 - 180mm) |
3.93 - 11.02" (100 - 280mm) |
3.93 - 11.02" (100 - 280mm) |
| Product Height |
Up to 1.77 (45mm) |
Up to 2.75" (70mm) |
Up to 2.36” (60mm) |
Up to 2.95" (75mm) |
Up to 3.93" (100mm) |
Up to 3.93" (100mm) |
| Packaging Speed |
40-120 cycles/min |
30-120 cycles/min |
30-120 cycles/min |
40-120 cycles/min |
40-120 cycles/min |
40-120 cycles/min |
| Film Roll Diameter |
Up to 12.59" (320mm) |
Up to 12.59" (320mm) |
Up to 12.59" (320mm) |
Up to12.59" (320mm) |
Up to 12.59" (320mm) |
Up to 12.59" (320mm) |
Power Supply | 220V 50/60Hz 2.4 KW | 220V, 50/60Hz 2.8 KW | 220v, 50/60HZ, 2,900 Watts | 220V, 50/60Hz, 2.8 KW | 220V, 50/60Hz, 2.8 KW | 220V, 50/60Hz, 2.8 KW |
Machine Size | 12' 3" x 2' 3" x 4' 9" (3720mm x 670mm x 1320mm) | 13' 3" x W 3' 2" x H 5' 5" (4000mm x 950mm x 1650mm) | 13' 3" x W 3' 2" x H 5' 5" (4000mm x 950mm x 1650mm) | 12' 11" x 2' 9" x 4' 10" (3920mm x 820mm x 1450mm) | 14' 2" x 3' 2" x 4' 11" (4340mm x 970mm x 1500mm) | 14' 2" x 3' 2" x 4' 11" (4340mm x 970mm x 1500mm) |
Machine Weight | 1058.22 lbs (480kg) | 996 lbs (452kg) | 1534 lbs (696kg) | 1213 lbs (550kg) | 1278 lbs (580kg) | 1278 lbs (580kg) |
Not Sure Which Machine Fits Your Product?
Tell us about your product, speed requirements, and packaging type and we’ll recommend the best flow wrapper for your operation.
