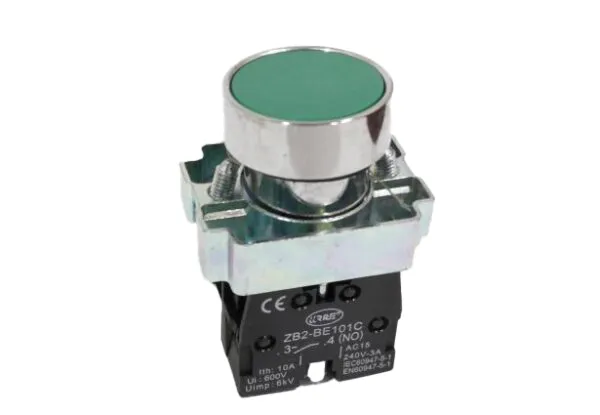

The GSB Green Start Button is a durable, industrial-grade pushbutton designed for reliable machine start operations in packaging, automation, and manufacturing environments. Engineered for consistent performance and long service life, this momentary pushbutton provides clear operator feedback and dependable actuation in demanding conditions.
Its high-visibility green actuator is universally recognized for start functions, improving operator safety and reducing the risk of incorrect inputs. Built with rugged materials and designed for easy panel mounting, the GSB is well-suited for control panels, machinery interfaces, and retrofit applications.
Key Features
High-visibility green actuator for start functions
Momentary pushbutton operation for precise control
Durable construction for industrial environments
Smooth actuation with consistent tactile feedback
Standard panel mount design for easy installation
Compatible with a wide range of control systems
Applications
Machine start/stop control panels
Packaging and flow wrapping equipment
Conveyor systems
Industrial automation machinery
Operator control stations
Specifications
Model: GSB Green Start Button
Type: Momentary pushbutton
Mounting Size: 22 mm (0.87 in) standard panel cutout

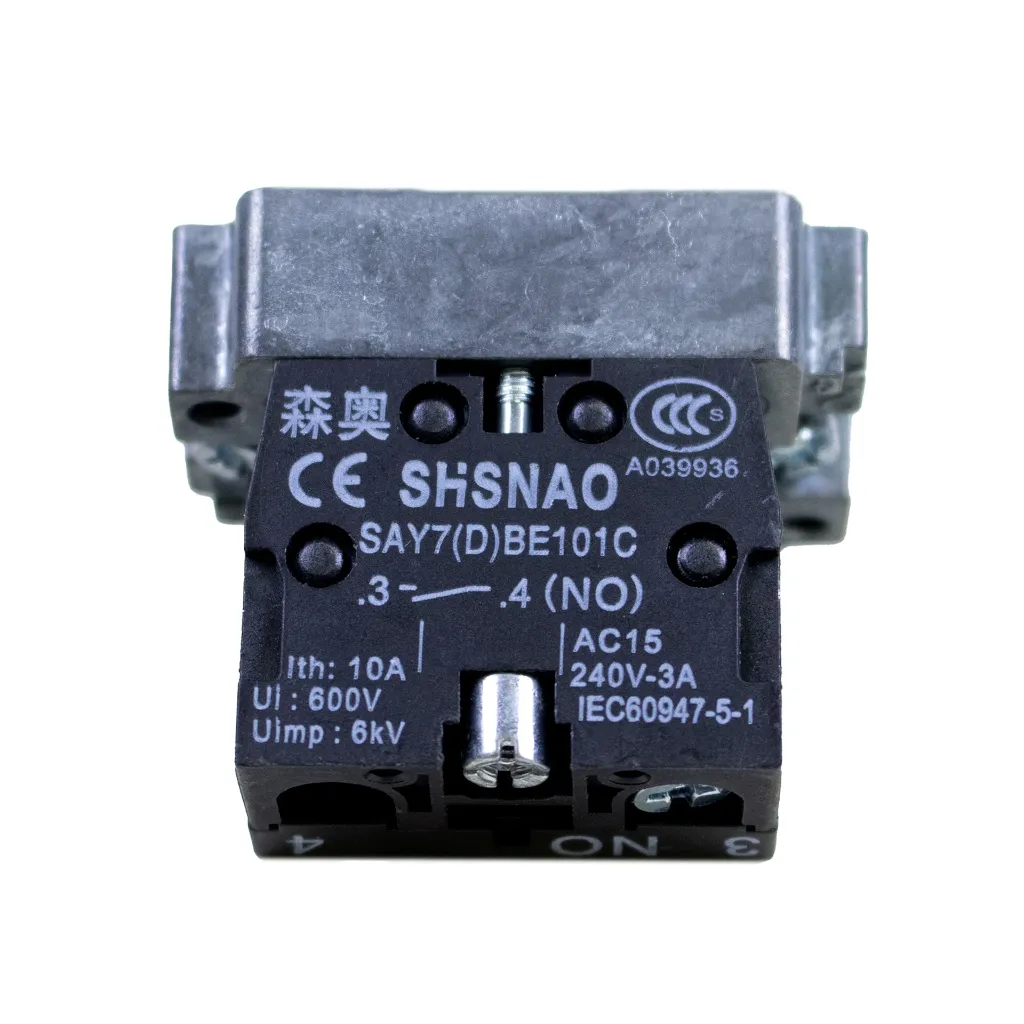

Contact Configuration: 1NO (Normally Open) standard (expandable depending on block configuration)
Operation Type: Momentary (spring return)
Rated Voltage: Up to 600 VAC / 600 VDC (depending on contact block)
Rated Current: Typically 10 A (application dependent)
Connection Type: Screw terminal or quick-connect (varies by configuration)
Protection Rating: IP65 (front panel, dust-tight and water-resistant)
Operating Temperature: -25°C to 55°C (-13°F to 131°F)
Housing Material: Industrial-grade plastic / metal bezel options available
