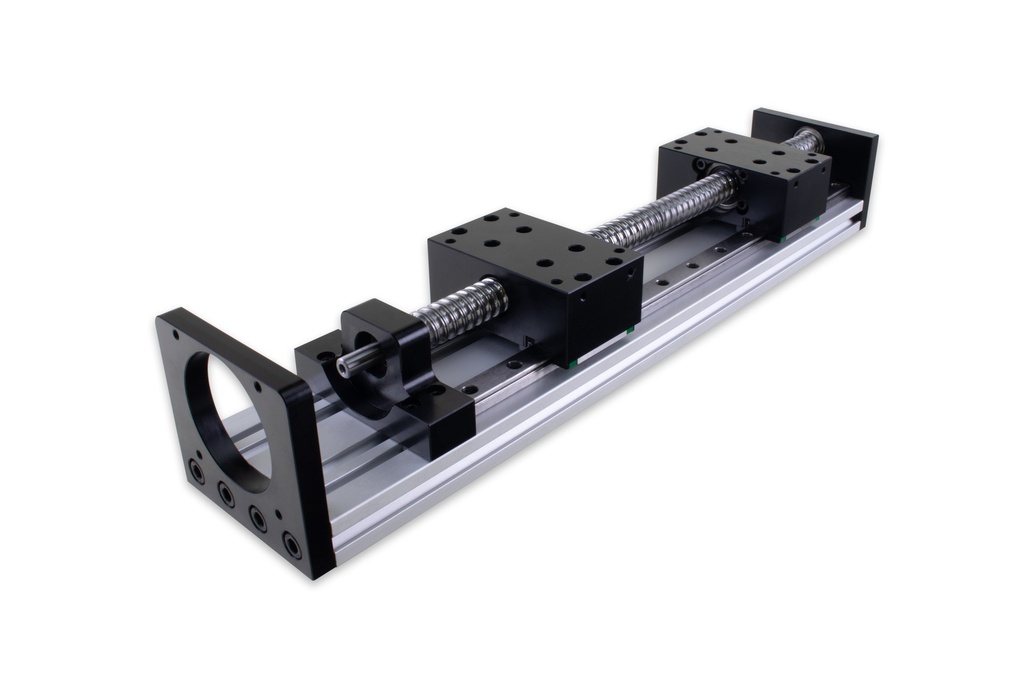

Ball Screw Mechanism

Ball Screw Mechanism

A ball screw mechanism is a precision linear motion assembly designed to convert rotary motion into smooth, accurate linear movement. Commonly used in packaging machinery, automation systems, CNC equipment, and servo-driven motion applications, the ball screw provides high efficiency, low friction, and excellent repeatability compared to standard lead screw designs.

By using recirculating ball bearings between the screw shaft and nut, the mechanism reduces mechanical resistance and allows controlled movement under load. This makes it ideal for applications requiring accurate positioning, consistent travel speed, and long service life in industrial environments.

Key Features

High-efficiency conversion of rotary motion to linear motion

Low-friction ball bearing design for smooth operation

Precision positioning and repeatable travel control

Suitable for servo motor and stepper motor driven systems

Durable construction for industrial machinery use

Helps reduce wear compared to conventional lead screws

Applications

Packaging machine adjustment systems

Servo-driven linear motion assemblies

Flow wrapper product positioning

CNC and automation equipment

Lifting, pushing, indexing, and transfer mechanisms

Machine changeover and guide rail adjustment

Specifications

Model: Ball Screw Mechanism

Component Type: Linear motion drive assembly

Motion Type: Rotary-to-linear conversion

Drive Method: Ball screw and recirculating ball nut

Compatible Drive: Servo motor, stepper motor, or manual drive depending on configuration

Function: Precision positioning and linear travel control

Operation: Low-friction linear movement under load

Material: Hardened steel screw shaft with precision-machined nut assembly

Bearing Type: Recirculating ball bearing system

Mounting Style: Machine-mounted linear drive assembly

Application Use: Packaging machinery, automation systems, conveyors, and positioning equipment

Service Environment: Industrial machine operation
